| Hardware Spec |
| Model Name |
MD-715E |
| Application |

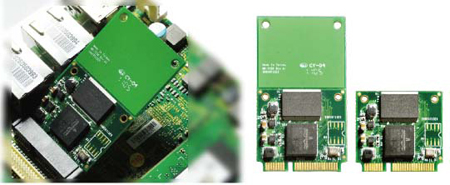

High Definition Advanced Media Decode Card |
| Interface |
PCI ExpressR mini card |
| Color |
Green |
| Operation Temp. |
32°F~ 185°F(0°C ~ 85°C) |
| Storage Temp. |
-13°F~ 212°F(-10°C ~ 100°C) |
| Relative Humidity |
10~90% @40°C, Non-condensing |
| Qualification |
Formal certification CE / FCC Class A |
| Power Consumption |
Idle < 30mW , 720P < 500mW , 1080P < 1W |
| Dimension |
Full size : 50mm*30mm , Half size : 22mm*30mm(L*W) |
| Packing Dimension |
80mm*80mm*8mm(L*W*H) |
| Weight(net) |
20g |
| Software Spec |
| OS Support |
MicroSoft Windows Xp ,Win7 |
| Linux |
| Format Support |
Standard definition (SD) and HD multi-format video decode of |
| H.264/AVC, MPEG-2, VC-1, WMV9 |
| MPEG-4, DivXR, Xvid and AVS |
| Software support |
Adobe Flash Player (v10.1) |
| Windows MediaR Player (v12) |
| ArcSoft TotalMedia Theatre |
| CyberLink PowerDVD |
| Media Player Classic |
| POTPlayer |
| KMPlayer |
| GOMplayer |
