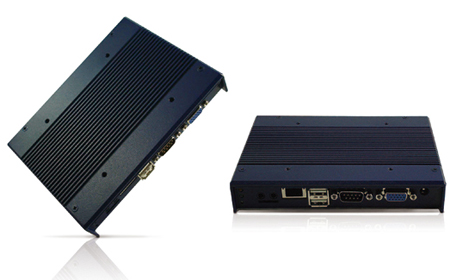

MBX-102
Intel Atom N270 1.6GHz Industrial Box PC w/ 1x COM, 2x USB, 1x LAN |
| |
|
| |
|
| |
 |
¡EEquipped with Intel Atom N270 CPU for cost effective and low power requirement
¡ESolid and rugged System Construction that withstands punishmnts from all environments
¡EUltra Slim
¡EWide Range Power Input (+12 ~ +24V)
¡EOptional Wireless Module |
| |
 |
| |
| System |
| Processor |
Intel ATOM N270 1.6GHz , Fan less |
| System Memory |
One 200 Pin 1.8V DDRII SODIMM Socket, total up to 2GB |
| Storage |
1.8" HDD or CF Socket, Micro SD card |
| Front I/O |
CF Socket |
| USB, USB *2, Type A |

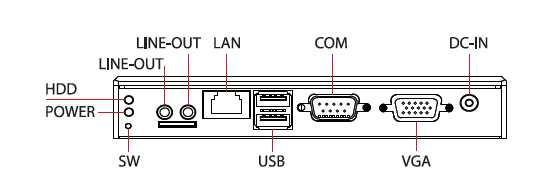

| Rear I/O |
Serial port, RS2321422/485 *1, DB-9 |
| USB, USB *2, Type A |
| Ethernet, PCI-e Gbe LAN *1, RJ-45 |
| CRT, VGA *1, DB-15 |
| Audio, Line in/out *2, Phone Jack |
| Expansion Interface |
One Mini PCI Socket |
| OS Support |
Microsoft Windows Serial, XP Embedded, WinCE |
| Power Requirement |
DC Jack, DC+12V-+24V wide range power input |
| Power Consumption |
+19V, lA |
| InBOX Expansion |
| LVDS interface |
18Bit one Channel |
| USB interface |
Two USB |
| Output Power |
+12V I 0.6A, +5V I lA |
| Maechanica |
| Construction |
Heavy-duty steel chassis(Black Color), Stainless stell Front |
| Operation Temp. |
32"F- 122"F(OOC -50¢XC) |
| Storage Temp. |
-13"F-140"F(-l0¢XC-600C) |
| Relative Humidity |
lo-90% @400C,?Non-condensing |
| Vibration |
5-17Hz,?0.1" double amplitude peak to peak, 1.5G acceleration peak to peak |
| Shock |
?lOG acceleration peak to peak(llms) |
| Rating |
NEMA 4/IP 65 compliant front bezel |
| Qualification |
Formal certification CE I FCC Class A |
| Mounting |
VESA 75 mount I Mount Bracket |
| Dimension |
?110mm*l52mm*26mm(L*W*FQ |
| Packing Dimension |
170mm*220mm*60nnn(L*W*FQ |
| Weight(net) |
2.2lb (l.Okg) |
| Optional Order |
| Memory |
DDRII 512Mb, DDRII 1Gb, DDRII 2Gb |
| Storage |
1.8" PATAHDD 40GI80G/100G, CF Card 64M-4G |
| OS |
Microsoft WinCE, XP Embedded, Linux |
|
| |
 |
| |
|
|
| |
| |
|
