| System |
| Processor |
Intel ATOM N270 1.6GHz |
| System Memory |
One 200 Pin 1.8V DDRII SOD:r::tviJ\A Socket, total up to 2GB |
| Storage |
1* 2.5" HDD or SSD, 1* CF |

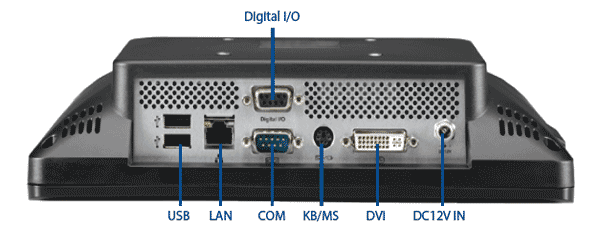

| I/O |
1*COM port w/ 5V/12V Power Selection (RS232/422/485) |
| 4* USB 2.0 Port |
| 1* RJ-45, Ethemet, PCI-e Gbe LAN |
| 1* 6pin mini-DIN mouse/keyboard connector |
| 1* DB-9 (4x Digital In, 4x Digital Out) |
| 1* DVI-1 |
| Touch screen |
Analog 5-wire resistive |
| OS Support |
Microsoft WinCE, XP Embedded |
| Power Requirement |
DC Jack, +12V |
| Dispay |
| LCD |
10.1" 16:10 TFTWSVGA |
| Resolution |
1024*600 |
| Luminance (cd/m2) |
200 |
| Maechanica |
| Construction |
Plastic Front Bezel and SECC Chassis |
| Operation Temp. |
0°C- 40°C w/2.5"HDD, 0°C- 40°C w/SSD or CF |
| Storage Temp. |
0°C- 70°C |
| Relative Humidity |
0 85% @40¢XC, Non-condensing |
| Qualification |
Formal certification CE I FCC Class B |
| Mounting |
VESAmount |
| Dimension |
262mm*200mm*74mm (L*W*H) |
| Packing Dimension |
IP65 Front Bezel |
| Weight(net) |
3.5 lb (1.7kg) |
| Optional Order |
| Camera |
1.3M+MIC |
| RFID |
RFID Module |
| Memory |
DDRII 512Mb, DDRII 1Gb, DDRII 2Gb, |
| Storage |
2.5" SATA HDD 160G/320G, SSD |
| OS |
Microsoft WinCE, XP Embedded, XP Pro |
