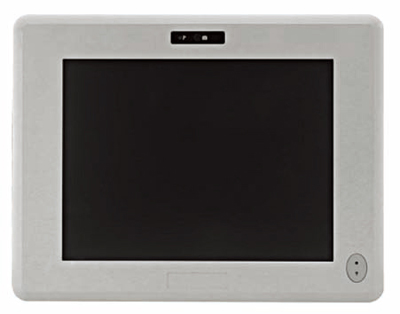

APC-120
12.1" Intel Atom N450 1.66GHz Home Automation Panel PC |
| |
|
| |
|
| |
 |
ˇEEquipped with Intel Atom N270 CPU for cost effective and low power requirement
ˇE12.1" Industrial grade A LED LCD panel for long life cycle and your tough working environments
ˇESolid and rugged System Construction that withstands punishmnts from all environments
ˇEIP65 Front Bezel
ˇEUltra Slim
ˇEOptional Wireless Module and Built In WebCam
ˇE1x S/PDIF port for your automation needs. |
| |
 |
| |
| System |
| Processor |
Intel ATOM N450 1.66GHz w/512K Cache |
| System Memory |
One 200 Pin 1.8V DDRII SODIMM Socket, total up to 2GB |
| Storage |
1* 2.5" HDD or SSD |

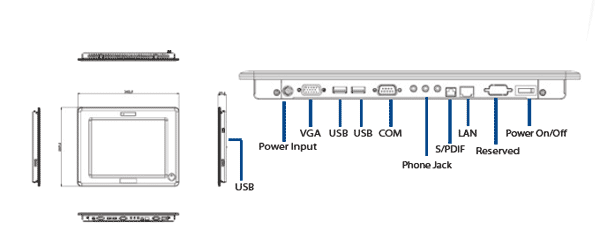

| I/O |
1*COM port (RS232) |
| 3* USB 2.0 Port |
| 1* RJ-45, Ethemet, PCI-e Gbe LAN |
| 1* DB-15, VGA, CRT |
| 3* Phone Jack, Mic In,Line in/out |
| 1* S/PDIF |
| Expansion Interface |
1*Mini PCI Socket, 1* Sim Card 2x3 Pin Header for 3.5G Solution |
| Touch screen |
Analog 5-wire resistive |
| OS Support |
Microsoft WinCE, XP Embedded |
| Power Requirement |
DC Jack, +12V |
| Dispay |
| LCD |
LED 12.1" TFT XGA |
| Resolution |
1024*768 |
| Luminance (cd/m2) |
500 |
| Viewing Angle |
7Y |
| Backlight Lifetime |
50,000 hrs |
| Maechanica |
| Construction |
Heavy-duty steel chassis, Aluminum Front Bezel |
| Operation Temp. |
32˘XF- 104˘XF(0˘XC -40˘XC) |
| Storage Temp. |
4˘XF-176˘XF(20˘XC-80˘XC) |
| Relative Humidity |
O˘Xo/o @40˘XC, Non-condensing |
| Qualification |
Formal certification CE I FCC Class A |
| Mounting |
VESAmount |
| Dimension |
343mm*269mm*29mm (L*W*H) |
| Packing Dimension |
IP65 Front Bezel |
| Weight(net) |
3.3 lb (1.5kg) |
| Optional Order |
| Memory |
DDRII 512Mb, DDRII 1Gb, DDRII 2Gb, |
| Storage |
2.5" SATA HDD 160G/320G, SSD |
| OS |
Microsoft WinCE, XP Embedded, XP Pro |
|
| |
 |
| |
| |
| |
|
|
| |
| |
|
