MPX-102 MN
Ultra Slim 8.4" Intel Atom N270 1.6GHz Industrial Panel PC


ˇEFeatures
ˇESpecifications
ˇETechnical Document
ˇEAssembly Example
ˇEDataSheet(PDF)



N270 Inside Fanless IP65 Modularized Ultra Slim Shock & Vibration Tested Wireless Dual Display
VESA


ˇEEquipped with Intel Atom N270 CPU for cost effective and low power requirement

ˇE8.4" Industrial grade A LED LCD panel for long life cycle and your tough working environments

ˇEModularized Design for your different application needs

ˇEPlug and Play system box allows quick upgrade and maintainance for minimal system down time

ˇESolid and rugged System Construction that withstands punishmnts from all environments

ˇEIP65 Front Bezel

ˇEUltra Slim

ˇEWide Range Power Input (+12 ~ +24V)

ˇEOptional Wireless Module


System
Processor Intel ATOM N270 1.6GHz
System Memory One 200 Pin 1.8V DDRII SODIMM Socket, total up to 2GB
Storage Space for 1.8" HDD or CF Socket, Micro SD card

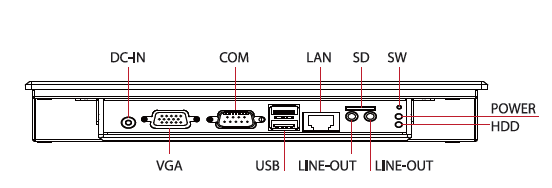

I/O Serial port, RS232/422/485 *1, DB-9
USB 2.0*5, Type A
Ethernet, PCI-e Gbe LAN *1, RJ-45
CRT, VGA *1
Audio, Line in/out *2, Phone Jack
Expansion Interface One Mini PCI Socket
Touch screen Analog resistive
OS Support Microsoft WinCE, XP Embedded, XP Pro
Power Requirement DC Jack, +12V-+24V Wide Range Input
Power Consumption 24W
Dispay
LCD AUO LED 8.4" TFT SVGA
Resolution 800*600
Luminance (cd/m2) 450
Viewing Angle 75"
Backlight Lifetime 50,000hrs
Maechanica
Construction Heavy-duty steel chassis (Blue Color), Aluminum Front Bezel
Operation Temp. 32˘XF- 122˘XF(O˘XC -50˘XC)
Storage Temp. -13˘XF-140˘XF(-l0˘XC-60˘XC)
Relative Humidity lo-90% @40˘XC, Non-condensing
Vibration 5-17Hz, 0.1" double amplitude peak to peak, 1.5G acceleration peak to peak
Shock lOG acceleration peak to peak (llms)
Rating NEMA 4/IP 65 compliant front bezel
Qualification Formal certification CE I FCC Class B
Mounting VESA 75 mount
Dimension 157mm*225mm*39.5mm (L*W*H)
Packing Dimension 240mm*305mm*100mm (L*W*H)
Weight(net) 4.4lb (2kg)
Optional Order
Memory DDRII 1GB, DDRII 2GB
Storage 1.8" PATA HDD 80G/100G/120G, CF Card 4/8/16/32/64GB
OS Microsoft WinCE, XP Embedded, Linux, Win XP Pro
